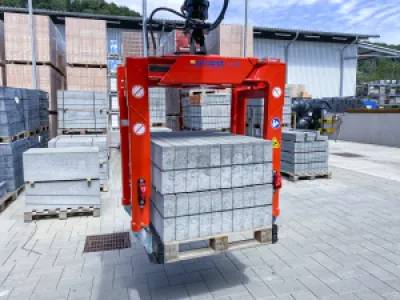

Very robustly designed grab for use on truck-mounted cranes with built in depth adjustment for adapting to building material packages with different heights.

This universal grab type is optimally equipped for the transportation of building material packages of different types and sizes. Due to the variable height adjustment and the large opening range, it can be used for all common building material packages with and without pallets.
Depth adjustment with a choice between floating position and locked.
The different levels are for the following heights: Level 1 (turned 0°) R 1,100 mm (43”)
Level 2 (turned 90°) R 1,280 mm (50”)
Level 3 (turned 180°) R 1,470 mm (58”)
Level 4 (turned 270°) R 1,650 mm (65”)
Due the optimised steel construction, no pressure when switching between the different depths is necessary - safe gripping of the packages.

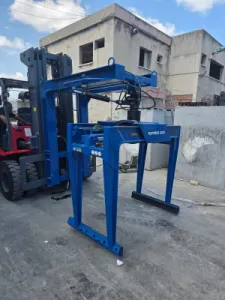

Specially designed for heavy duty work with fork lift trucks.

For gripping heavier loads, or packs produced on multi-layer production machines. In particular used in conjunction with steel finger grippers. Can also be used for gripping packs of pavers which are not vertically steel strapped.

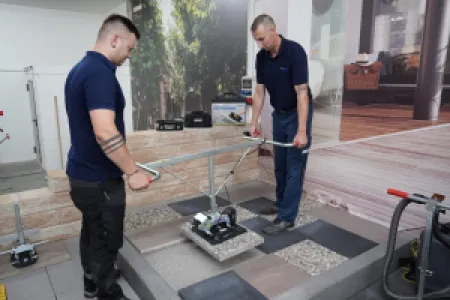

For the easy, exact and economical laying of concrete slabs, natural stones, slabs with exposed aggregates, large pavers, petrol station pavers and environmental pavers.

Chassis:
Rugged undercarriage (L x W = 1,300 mm x 1,300 mm / 51.51 x 51.51 in), 1 steering axle,
1 axle with hand brake, 4 pneumatic heavy duty wheels, compartments for counter weights, foldable supports.

Swing Crane:
Telescopic in height via a hand operated winch crane jib 3,9 m (153,54 in) in length and able to turn 350° with 4 different stopping points. Foldable down to 2 m (78.74 in) in length and 2 m (78.74 in) in height for easy transport.

Vacuum turbine unit VGE electrically driven (E):
Powerful vacuum turbine with 3-phase elec­trical motor, maximum underpressure 520 mbar (7,541 psi), incl. motor protection switch, plug CEE 32 A with integrated phase-switch, silencer, air-fil-ter with pre-separator. Type VGE-SB-L-E.

Vacuum Hose Lifter:
Supply hose, lifting unit, operating valve unit, hose-cylinder extension.
Lifting height -250 mm/9.84 inch (below ground level) to +1250 mm/49.21 inch.

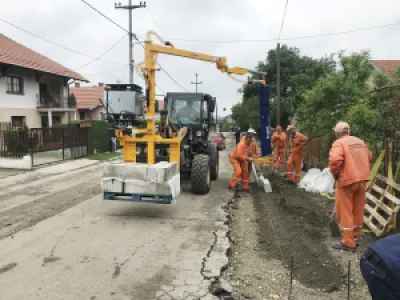

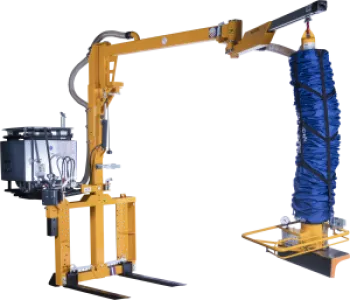

The JUMBO-BV-VARIO is a vacuum curb laying machine with articulated boom and offers highest safety in the swivel area thanks to the innovative Probst safety feature "SAFESTOP".

Mostly kerb stones are installed one side of the road, while on the other side vehicles are still allowed to drive. Existing knuckle boom jibs provide some advantages, such as space requirements, but usually they have disadvantages because it cannot be avoided that they might swing into the trafficed area. This could cause fatal accidents.

Vacuum Components:
Petrol engine or hydraulic motor and vacuum turbine unit with silencer. Supply hose and lifting hose. Pickup height from fork prong level up to approximately 1,100 mm (43¼ inch). Operating Valve unit with handle, dust­filter. Kerb stone suction gripper with durable foam rubber seal, also suitable for natural kerbstones. All components can be changed using quick fasteners.

Pillar Swing Crane: With hydraulic, vertical tilt capability, diagonal to the direction in which it is travelling. Capable of tilting in the direction in which it is travelling via the pivotal cylinder of the ­loading bucket. Swing range of the crane jib appr. 270°.
Total height of appliance in working position approx. 2,910 mm (114,5 inch).
Transport height approx. 2,250 mm (88,5 inch).
The jib can be folded hydraulically.
JUMBO-BV-VARIO-150: incl. kerb stone suction plate WSP-150 (Working load limit 150 kg/330 Ibs).
JUMBO-BV-VARIO-200: incl. kerb stone suction plate WSP-200 (Working load limit 200 kg/440 Ibs).
JUMBO-BV-VARIO-250: incl. kerb stone suction plate WSP-250 (Working load limit 250 kg/550 Ibs).

The world's fastest installation clamp

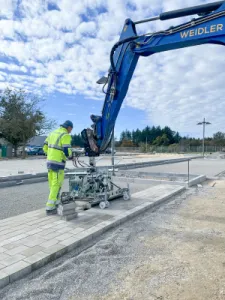

The HVZ-PAVERTRON is the world's first electro-hydraulic installation clamp for excavator attachment (from 2.5 tons). Faster, more flexible and more intelligent – developed for professionals to make the laying process even more effective. An investment that pays off in no time.

Up to 700 m² per day: the HVZ-PAVERTRON takes your installation process to a new level of speed. Thanks to the speed program and the booster function, cycle times are drastically reduced. The result? Maximum productivity with every installation.

Another highlight is the patented calibration program. It adapts the clamp to the carrier device – for maximum possible clamp speed and smooth switching of movements.
